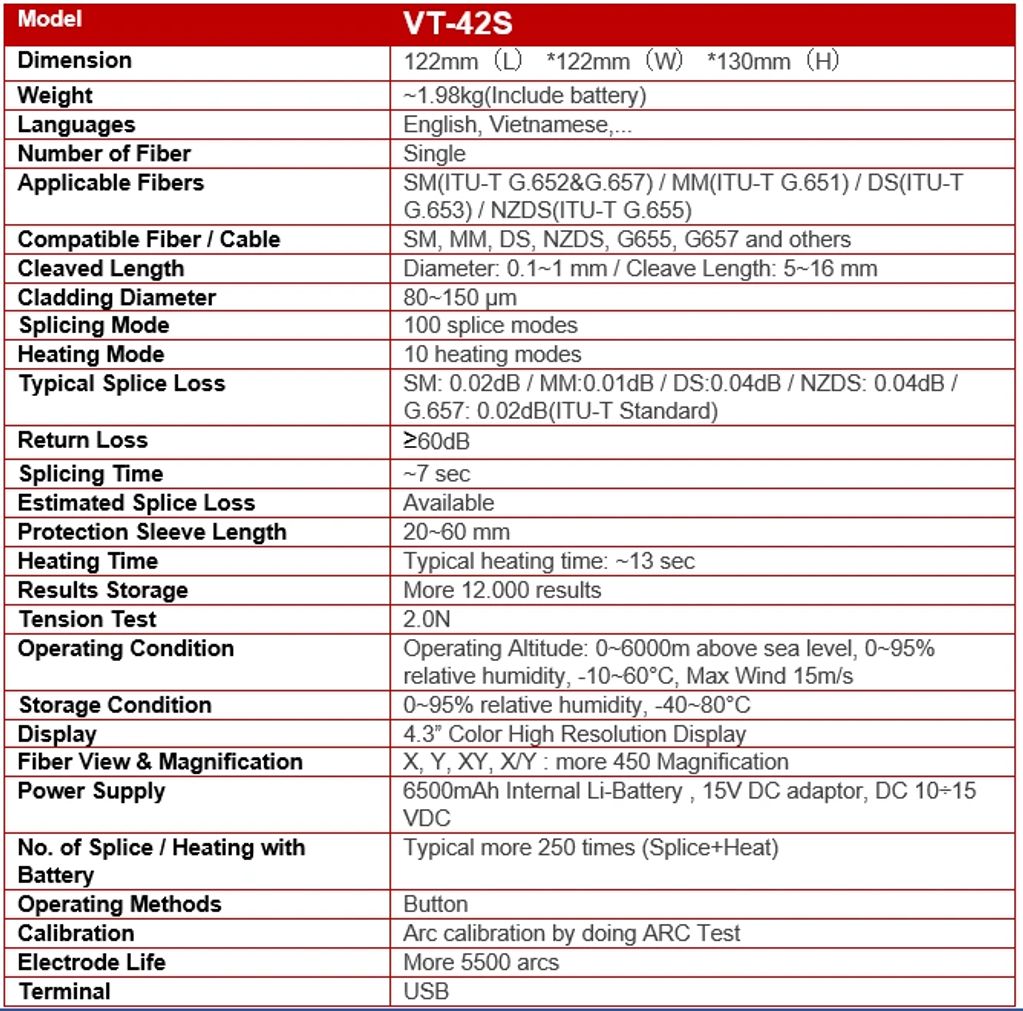

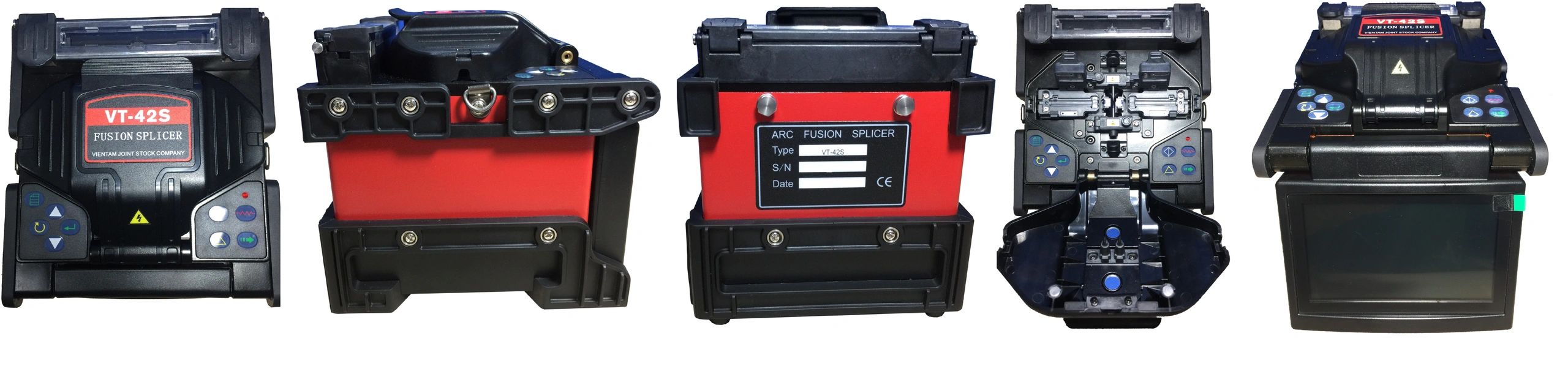

VT-42S ARC Fusion Splicer

---

  VT-42S is an automatic fusion splicer for SM, MM, DS, NZ-DS(G655), EDF and other fibers. VT-
42S is capable of ensuring high-quality splicing even in the most unfavorable environment
conditions. VT-42S splicers are suitable for core alignment. Using one of these methods the two
cleaved fibers are automatically aligned by the fusion splicer in the x/y plane, then are fused
together. The bare fiber area is protected either by recoating or with a splice protector. A splice
protector is a heat shrinkable tube with a strength membrane and less loss.

• Industry-Standard Chips World fast splicing and heating time: ~7 second splicing and ~13 second heating
• GPU processors help increase performance and reduce power consumption
• Newly-designed carry case: easy carry and can be as work plate
• Powerful battery and Top Quality electrode: up to more 250 times of continuous splice and heat and more 5500 times life span electrode
• Neat and light design, integrated with 2-mode circuit holder, convenient when using conventional
• Terminal solder and subscriber optical cable (drop cable)
• Equipped with double VGroove for more precise setting operation
• Fully Automatic Operation
• 6000m altitude ensures Splice Quality
• SYSTEM TEST ensures the best working condition
• 4.3 inch high resolution color screen, anti-reflective
• Pause function, convenient for scientific research
• Store more 12.000 groups of splice results with 2.500 picture
• USB&DC interface
• More 450 Magnifications of X and Y
• Display fiber in each X, Y axis; or both X and Y at the same time
• Four motors Core-Alignment PAS technology
• Anti-shock, dust proof and waterproof.
